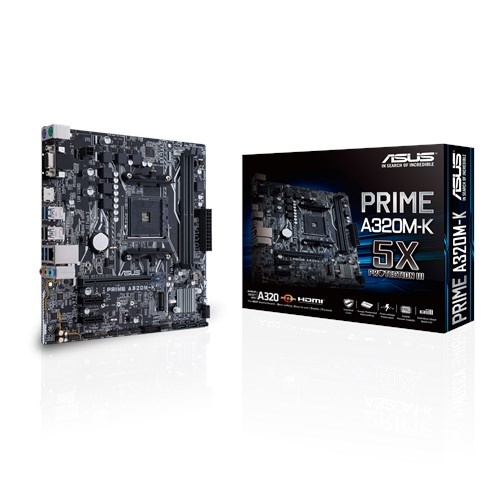

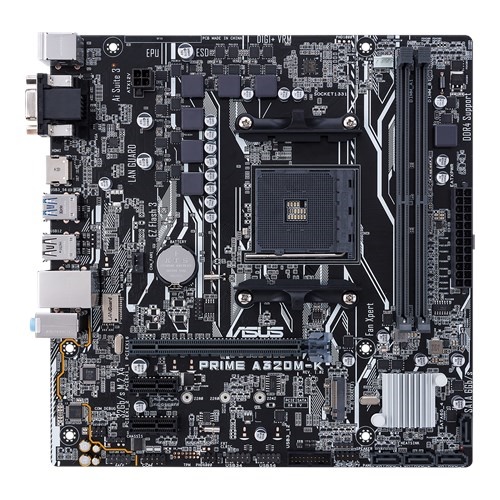

Asus Prime A320M-K AMD Ryzen AM4 uATX Motherboard

Asus
Add to wishlist
Compare

Key Features

  • Model: Asus Prime A320M-K
  • CPU: AMD Ryzen
  • Chipset: AMD A320
  • 2 x DIMM DDR4
  • Max 32GB Memory

(বিঃদ্রঃ, অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক ও ডেলিভারী সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে যেকোনো প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।)

৳ 6,000 ৳ 6,620

Compare

Asus Prime A320M-K AMD AM4 uATX motherboard with LED lighting, DDR4 2400/2133 MHz Un-buffered Memory, 32Gb/s M.2, HDMI, SATA 6Gb/s, USB 3.0. 5X Protection III: Multiple hardware safeguards for all-round protection LED illumination: Lighting control for audio trace paths. Native M.2: Lightning-fast storage speeds. One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3

Categories: , Tags: ,
brands

Asus

Specification

Basic Information
Supported CPU AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors
Supports CPU up to 8 cores
Chipset AMD A320
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
Form Factor mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Expansion Slots
PCI AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors- 1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors – 1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors- 1 x PCIe 3.0/2.0 x16 (x4 mode)
AMD A320 chipset- 2 x PCIe 2.0 x1
M.2 Socket 1 x M.2 Socket 3
Memory
Type DDR4
Slots 2
Supported Memory DDR4 2400/2133 MHz Un-buffered Memory
Maximum Memory 32GB
Graphics
Graphics Multi-VGA output support : HDMI/RGB ports
Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Max Shared Memory 2048 MB
Connector & Ports
HDMI 1 x HDMI
D-Sub (s) 1 x D-Sub
USB (s) 4 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
LAN Port (s) 1 x LAN (RJ45) port(s)
Supported Storage AMD A320 chipset :
4 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 10
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD 7th Generation A-Series/ Athlon™ X4 Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
Audio Back I/O Ports 3 x Audio jack(s)
1 x Front panel audio connector(s) (AAFP)
Internal I/O Ports 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Speaker connector
Warranty Information
Manufacturing Warranty 03 years
